18 METER DIESEL ARTICULATING BOOM LIFT
PRODUCT CODE
GTBZ18A
GTBZ18A
BRAND
DL-Dingli
DL-Dingli
STICKERS

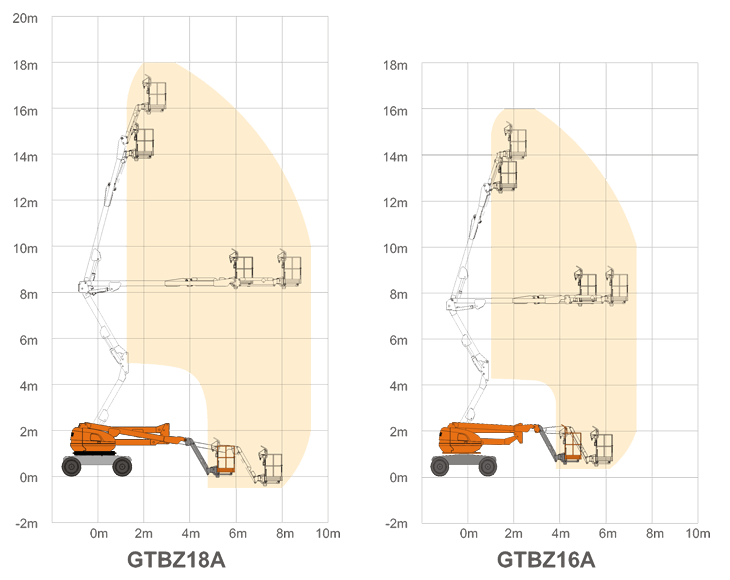

| Working Hight | 18.00m |
| Platform Foor Hight | 16.00m |
| Max.Hrizontal Rach | 8.85m |
| Up and Over Clearance | 8.45m |
| Overall Length | 7.59m |
| Length (Tansport Position) | 5.80m |
| Overall Width | 2.30m |
| Overall Height | 2.33m |
| Platform Size | 1.80m×0.76m |
| Ground Clearance | 0.36m |
| Wheelbase | 2.20m |
| S.W.L | 230kg |
| Max.Occupants | 2 |
| Turntable Tilswing | 0 |
| Turning Radius(Inside/Outside) | 2.84m/4.29m |
| Turntable Turning | 360°continuous |
| Platform Rotating Range | ±90° |
| Jib Lift Movenent Range | +70°/-60° |
| Travel Speed(Stowed) | 6.1km/h |
| Travel Speed(Working) | ≤1.1km/h |
| Gradeability | 40% |
| Maximum Slope | 5° |
| Tyre | 33×12-20 |
| Engine (Kubota V2403) | 34.1kw/2400rpm |
| Diesel | Diesel |
| Hydraulic Tank | 184L |
| Diesel Tank | 90L |
| Gross Weight | 7835kg |
Standard equipment
● Can Bus Technology
● Proportional controls
● Safety electric pump
● Horn
● Hour meter
● Tilt sensor
● 360° continuous turntable rotation
● Self-leveling platform
● Onboard diagnostic system
● Hydraulic platform rotation
● Anti-restart engine protection
● The glow plugs for cold starting
● 2WD
● European III emission engine
● Deadman
● Hydraulic oil cooler
● Solid tyres
● Proportional controls
● Safety electric pump
● Horn
● Hour meter
● Tilt sensor
● 360° continuous turntable rotation
● Self-leveling platform
● Onboard diagnostic system
● Hydraulic platform rotation
● Anti-restart engine protection
● The glow plugs for cold starting
● 2WD
● European III emission engine
● Deadman
● Hydraulic oil cooler
● Solid tyres
Options
● Oscillating axle
● Overload sensor with alarm
● Hydraulic generator
● Hydraulic welder
● 4WD
● Hydraulic compressor
● Hydraulic water pump
● AC power on the platform
● Platform work lights
● Non-marking tyres
● Overload sensor with alarm
● Hydraulic generator
● Hydraulic welder
● 4WD
● Hydraulic compressor
● Hydraulic water pump
● AC power on the platform
● Platform work lights
● Non-marking tyres
