20 METER SELF PROPELLED ARTICULATING BOOM LIFT
PRODUCT CODE
GTBZ20AE
GTBZ20AE
BRAND
Dingli
Dingli
STICKERS

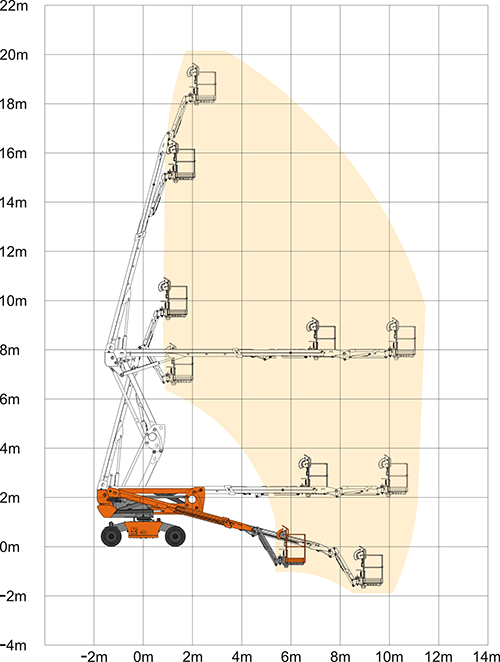

Max.Working Height | 20.23m |
Max.Platform Height | 18.23m |
Max.Horizontal Reach | 11.14m |
Max.Horizontal Reach | 7.65m |
Overall Length(Stowed) | 8.61m |
Overall Length(Transport) | 6.71m |
Overall Width | 2.49m/2.30m |
Overall Height | 2.44m/2.45m |
Platform Size | 2.20m×0.80m |
Ground Clearance | 0.34m |
Wheel Base | 2.60m |
S.W.L | 230kg |
Max.Occupants | 2 |
Turntable Tailswing | 0.63m |
Turning Radius(Inside/Outside) | 3.37m/5.37m |
Turret Rotation | 360°continuous |
Platform Rotation | ±90° |
Jib Movement | +70°/-60° |
Travel Speed(Stowed) | 6.1km/h |
Travel Speed(Working) | ≤1.1km/h |
Gradeability | 40% |
Maximum Slope | 5° |
Tyre | 315/55 D20 |
Batteries | 8×6V/420Ah |
Integrated Charger | 48V/35A |
Drive Motor | AC 48V/3.3kW |
Lifting Motor | 48V3.8kw |
Hydraulic Tank | 67L |
Gross Weight | 8360kg |
Standard equipment
● Proportional controls
● Safety electric pump
● Hour meter
● Tilt sensor
● 360° continuous turntable rotation
● Self-leveling platform
● 4X4 Drive
● Foam-filled Tyres
● Onboard diagnostic system
● All motion alarm
● Horm
● Flashing beacon
● Zero emission
● Foot switch
● Safety electric pump
● Hour meter
● Tilt sensor
● 360° continuous turntable rotation
● Self-leveling platform
● 4X4 Drive
● Foam-filled Tyres
● Onboard diagnostic system
● All motion alarm
● Horm
● Flashing beacon
● Zero emission
● Foot switch
Options
● Overload sensor with alarm
● AC power to platform
● Platform work lights
● Non-marking tyres
● AC power to platform
● Platform work lights
● Non-marking tyres
